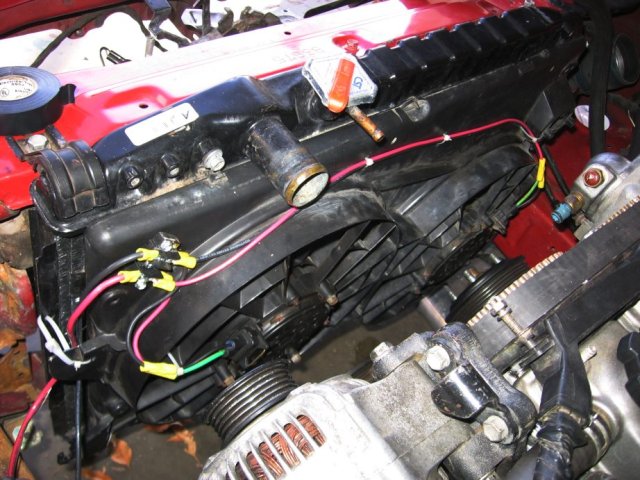

Wiring for each of the electric fans. The 10GA wires are rated at 30A, while the 12GA's are rated at 20A apiece.

Date: 12/19/2006
Owner: James M. W.
Size:
Full size: 922x691
nextBattery area. I re-ran several feeders. One to the fans, one to the amp in the rear, and one to the main fuse block.lastIt is a weeee bit tight there...
Curious about how much space I have to get a downpipe in there.first Shot of the 7M from the passenger side, Electric fans are installed.previous

Wiring for each of the electric fans. The 10GA wires are rated at 30A, while the 12GA's are rated at 20A apiece.
